THE G-BLOCK

This patented and award winning ballast design has revolutionized the staging industry with its fully engineered, multi-functional properties, used for truss grids, truss arches, and dead weight. Features of the G-BLOCK include; bolt patterns for 12 inch and 20.5 inch box truss on five sides, as well as bolt truss in four horizontal directions, in order to create outriggers or bolt truss vertically, for tower truss.

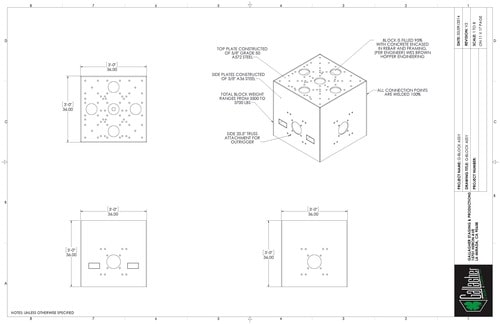

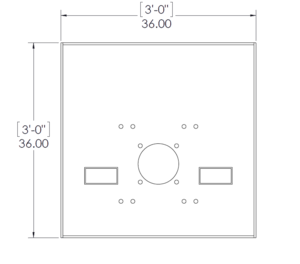

G-BLOCK in its entirety weighs-in at an impressive 3500 lbs — weights may vary. Its cement core is encased in black powder-coated steel, to prevent any chipping that could potentially alter the integrity of the ballast weight. The G-BLOCK is 36 inch wide x 36 inch deep x 36 inch tall, forklift accessible from two sides, and receives screw jacks to level.

• THE G-BLOCK
• THE MINI G-BLOCK

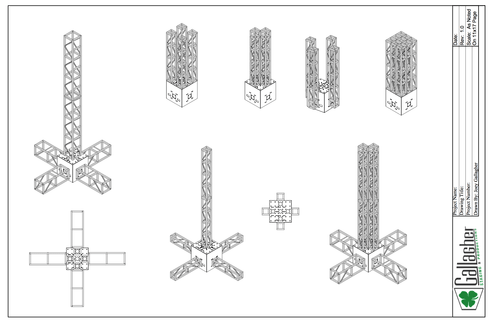

• G-BLOCK CONFIGURATIONS

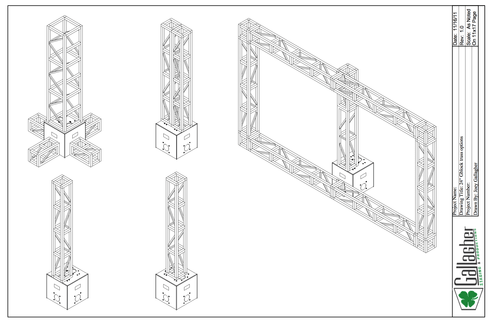

• MINI G-BLOCK CONFIGURATIONS
